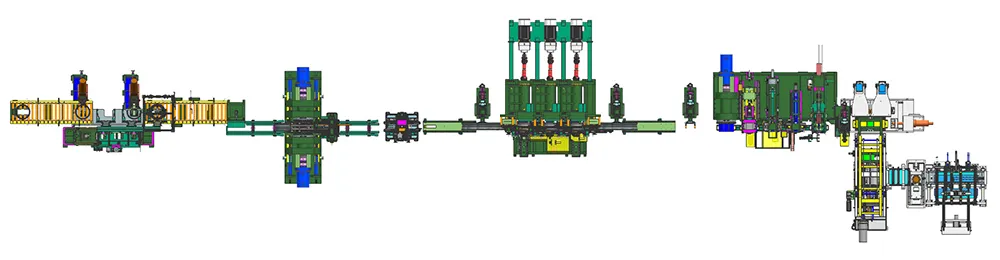

Front View

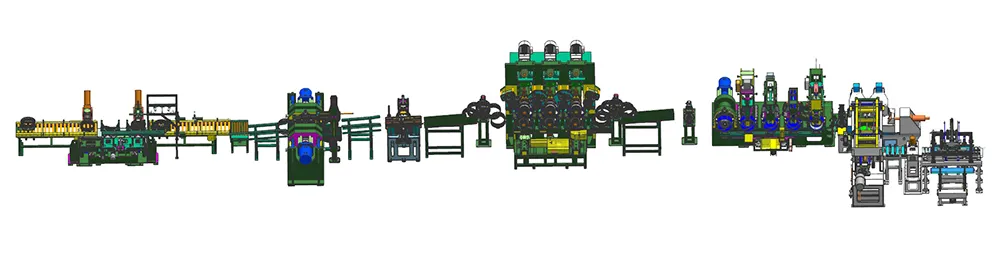

Top View
We design and manufacture fully automatic production lines for steel wheel rims, capable of producing rims ranging from 10 to 54 inches. Our wheel rim production lines are tailored to meet the specific requirements of different rim sizes and applications, including lines for passenger vehicle rims, commercial vehicle rims, and agricultural machinery rims. Each production line offers automated processes for round bending, forming, and welding, ensuring efficient and precise profiling for steel wheel rims.
Our production lines can be custom-designed and manufactured to accommodate various types of wheel rims, diameters, and production processes. We offer small, large, and extra-large wheel rim production lines, with adjustable processing capabilities tailored to meet specific customer requirements.
| By Wheel Type | Passenger Car Wheel Rim Production Line | Commercial Vehicle Wheel Rim Production Line | Agricultural Vehicle Wheel Rim Production Line | Construction Equipment Wheel Rim Production Line |
| Wheel rim diameter | 12-17inch | 17.5-26inch | 20-54inch | 20-38inch |
| Wheel rim width | 3-10inch | 5.5-16inch | 7-28inch | 7-28inch |
| Steel thickness | ≤4mm | ≤8mm | ≤8mm | ≤20mm |
- High automation and fully autonomous operation
As the first and only manufacturer in China capable of producing fully automated rim production lines, our system requires no manual intervention throughout the entire process. Automated operations include loading, round bending, welding, weld seam treatment, and expanding to final dimensions, significantly reducing labor involvement while enhancing wheel production efficiency and product consistency. - Exceptional production efficiency
Our passenger vehicle rim production line achieves a production rate of up to 300 units per hour, while the commercial vehicle rim line reaches up to 200 units per hour. This level of efficiency places us far ahead of other domestic wheel equipment manufacturers. - Optimized space layout
The steel wheel rim production line is designed with a compact and efficient layout, covering processes from rim coiling, butt welding, trimming, flaring, rolling, to expansion. This streamlined setup minimizes required floor space and facilitates easy logistics and material handling. - Remote control and maintenance
Equipped with a PLC control system, the rim production line enables fast data transfer and easy monitoring via remote control technology. Additionally, internet connectivity allows for remote maintenance and troubleshooting, simplifying routine maintenance and inspections.
