Butt Welding Machine

Flash butt welder used in the steel wheel production line for welding steel wheel rims

Butt Welding Machine
  • Butt Welding Machine
  • Butt Welding Machine
    • Request a Quote

    Butt Welding Machine

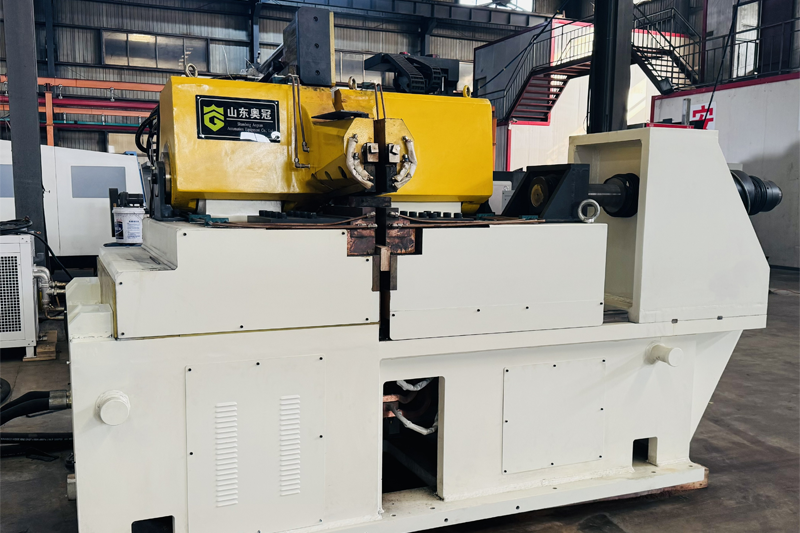

    Flash butt welder used in the steel wheel production line for welding steel wheel rims

    The butt welding machine used in steel wheel production line is designed for joining and welding the ends of the coiled hoops together to form wheel rims. Both clamping and welding functions are operated hydraulically, with welding parameters easily adjustable via a touch screen.

    Butt welding machines can be provided with AC or DC butt welding process. The DC welder offers faster welding speed and superior weld quality, ideal for high-precision needs, but requires stricter material and flatness specifications. The choice of machine type depends on specific production needs, allowing customization for optimal performance.

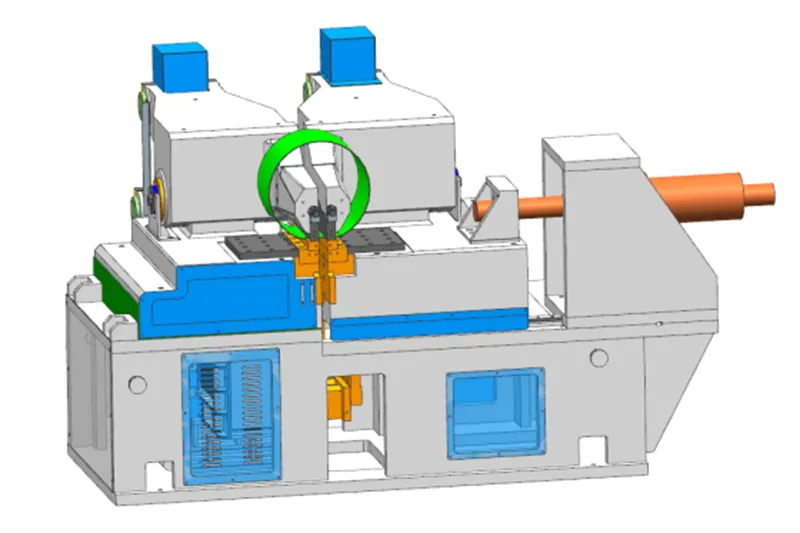

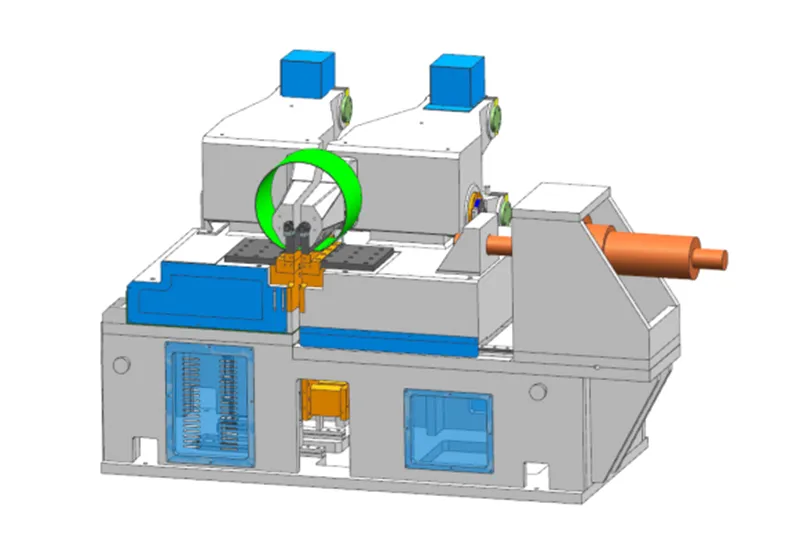

    Process Flow Process Flow
    AC Flash Butt Welding Machine
    Model UNV-400 UNV-630 UNV-800 UNV-1000 UNV-1250 UNV-1500
    Rated input voltage of main circuit 380V 380V 380V 380V 380V 380V
    Rated input voltage of control circuit 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
    Secondary voltage 6.3V-12.6V 6.3V-12.6V 7.9V-15.8V 7.9V-15.8V 9V-18V 9V-18V
    Solenoid valve voltage 24V 24V 24V 24V 24V 24V
    Total power input 400KVA 630KVA 800KVA 1000KVA 1250KVA 1500KVA
    Max. upsetting force 280KN 280KN 320KN 320KN 400KN 400KN
    Max. clamping force 540KN 540KN 600KN 600KN 750KN 750KN
    Max. welding area 1500mm² 2100mm² 3200mm² 3600mm² 7200mm² 9600mm²
    Max. width of wheel rim 300mm 350mm 400mm 450mm 800mm 800mm
    Max. thickness of wheel rim 5mm 6mm 8mm 8mm 9mm 12mm
    Min. diameter of welded rim 250mm 300mm 400mm 400mm 540mm 540mm
    Cooling water flow rate 80L/min 100L/min 140L/min 160L/min 180L/min 200L/min
    Cooling water pressure 0.2-0.4Mpa 0.2-0.4Mpa 0.2-0.4Mpa 0.2-0.4Mpa 0.2-0.4Mpa 0.2-0.4Mpa
    Cooling water temperature ≤30℃ ≤30℃ ≤30℃ ≤30℃ ≤30℃ ≤30℃
    Cooling water type Purified water Purified water Purified water Purified water Purified water Purified water
    DC Butt Welding Machine
    Model DC350*4
    Rated input voltage of main circuit 380V
    Rated input voltage of control circuit 380V/50HZ
    Solenoid valve voltage 24V
    Total power input 1400KVA
    Max. upsetting force 320KN
    Max. clamping force 600KN
    Max. welding area 1500mm²
    Max. width of wheel rim 300mm
    Max. thickness of wheel rim 5mm
    Min. diameter of wheel rim 460mm
    Cooling water flow rate 200L/min
    Cooling water pressure 0.2-0.4Mpa
    Cooling water temperature ≤30℃
    Cooling water type Purified water
    Features
    • Multi-level adjustable welding current settings support a variety of rim specifications.
    • The high-quality alloy copper electrodes ensure excellent conductivity and high durability.
    • The hydraulic system on the flash butt welding machine has a compact structure that minimizes the required footprint.
    • It supports both automatic and manual welding, making it user-friendly.
    • All electrical components of the butt welder have integrated connection that makes the installation and maintenance easier.
    • Its framework design enhances welding strength and precision.
    • The rim welding machine can be equipped with an automatic slag conveyer to clean the slag from the electrodes and the bottom of the butt welder.
