    Air Leak Testing Machine

    Leak detector used in steel wheel production line to determine small leaks in the weld zone

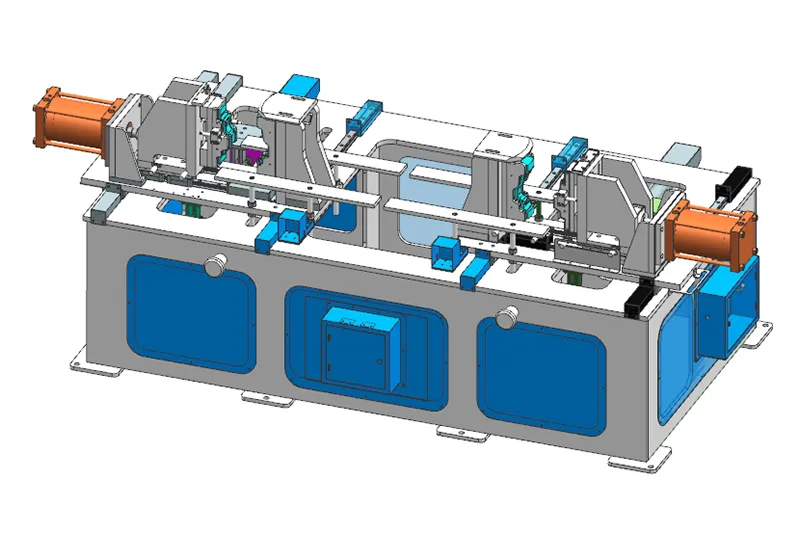

    After the rim is fully formed, it passes through the air leak testing machine, which is specialized equipment in the steel wheel production line designed to detect any small holes and cracks in the weld area of wheel rims. This leak detector comprises three main sections: the mechanical unit, hydraulic power system, and electrical control system. These components are integrated via electrical connections to ensure synchronized operation, allowing for precise and reliable detection of even the smallest leaks in the weld area.
    Process Flow Process Flow
    • Process Flow
    Specifications
    Model QMJC-350 QMJC-500
    Power supply AC 380V/3phase/50HZ AC 380V/3phase/50HZ
    Rated power 46kW 55kW
    Wheel rim width 5-8.25inch 8.25-11.75inch
    Wheel rim diameter 12-18inch 16-25inch
    Max. thickness of wheel rim 4.6mm 8mm
    Voltage 380V±10%, 3phase, 50HZ 380V±10%, 3phase, 50HZ
    Loading capacity of robotic manipulator 205kg 240kg
    Machine weight 1.5t 2.2t
    Compressed air 0.4-0.6Mpa 0.4-0.6Mpa
    Features
    • The air leak testing machine offers both manual and automatic operation modes, with a balanced and ergonomic layout for ease of use.
    • Constructed from thick welded steel plates, the frame is highly stable and durable.
    • Powered by a pneumatic system, the mold operates efficiently and at high speeds.
    • The dual-station setup enables faster air leak detection cycles, improving overall throughput.
